Invoke-VMScriptPlus v2

The ability to execute scripts inside the guest OS of your VMs, is definitely one of the more useful cmdlets available in VMware PowerCLI. A year ago I published the first version of my Invoke-VMScriptPlus function to solve some of the issues the Invoke-VMScript cmdlet has in my opinion.
That function allowed you to run multi-line scripts in a Linux guest OS on your VMs. It also allowed you to use she-bang lines, to indicate which interpreter your script had to run in (bash, perl, python, nodejs, php…). Another handy feature was that you could use Linux here-documents in your scripts.

With the introduction of PowerShell Core (aka PowerShell v6), the lack of support for any Guest OS of the Windows family became obvious. Prompted by a recent thread in the VMTN PowerCLI Community, I decided it was time to publish a new version of my Invoke-VMScriptPlus function.

I defined some target features  for the new version of the Invoke-VMScriptPlus function:

  • Support the Windows family of Guest OS
  • Support using PowerShell Core scripts (Windows and Linux)
  • Fix the ScriptText length limitation

The Code


Line 1-35: The latest version of my OBN (Object By Name) class. It allows one to pass, or the actual .Net object, or the name of the object, as an argument to a parameter. See also Home Made OBN

Line 132: When the Invoke-VMScriptPlus  function cannot determine the Guest OS family, this parameter allows you to force a specific Guest OS family. Accepted values are Windows and Linux.

Line 133: The installation path of PowerShell Core on a Windows OS contains the version number. I could not find an easy way to determine the version number. This parameter allows to specify a specific PowerShell Core version. The default version is 6.0.2, and that is because that is the highest version VMware PowerCLI currently supports. Note that for the time being running VMware PowerCLI does not officially support running in PowerShell Core on a Windows Guest OS. Always consult the latest Compatibility Matrix to find out what is officially supported by VMware PowerCLI.

Line 134: Most Linux OS return output with only a LF. This switch can be used to convert the LF to a CRLF, when the resulting output of the script is returned.

Line 143-151: A hard-coded table with the supported interpreters, and their corresponding SheBang line. This version of the Invoke-VMScriptPlus  function adds PowerShell Core to the table.

Line 157-168: If the VM is not powered on, or if the VMware Tools are not running, or if the Guest OS family can not be determined, the function will return with an error message.

Line 167-188: The Invoke-VMScriptPlus  function tests, based on the Guest OS family, if the requested ScriptType is valid.

Line 189-195: For a VM with a Guest OS in the Linux family, tests if there is a SheBang line in the ScriptText. If not, add a line based on the ScriptType value.

Line 198-209: Create the Authentication object for the GuestOperations methods. Note that in this release of the function, the GuestPassword requires a SecureString instead of a String.

Line 212-218: Depending on the ScriptType, the temporary file, see the following annotations, will have a filetype.

Line 219-231: The Invoke-VMScriptPlus  function uses two temporary files to store the script and the script’s output.

Line 233-234: If the target Guest OS family is Linux, the line endings in the ScriptText are converted from CRLF to LF

Line 236-245: The ScriptText is copied to the temporary file. This is done over HTTPS with the Invoke-WebRequest cmdlet. Note that the temporary filename returned earlier contains the IP address of the ESXi node on which the VM is running. This potentially causes problems with the Invoke-WebRequest and invalid certificates. In the URI for the file, the function replaces the IP address with FQDN.

Line 250-258: On a Guest OS in the Linux family, the file containing the ScriptText needs to be made “executable”

Line 278-281: On a Guest OS in the Windows family, the path to the PowerShell Core EXE, contains the version number. This is where the $PSv6Version parameter comes into play. The default value is currently set to 6.0.2.

Line 263-268,288-293: Script execution is started

Line 297-306: Wait for the script execution to end

Line 308-312: The output is fetched, again with an Invoke-WebRequest.

Line 313-317: Clean up the temporary files

Line 318-338: Return an object containing the script output and further info about the script execution

Sample Use

The following snippet lists the content of the os-release file, a common method in Linux distros to obtain the name and version of the OS. We use the following simple bash script.

Note that in this new version of the Invoke-VMScriptPlus function you have to use a SecureString (instead of a String in the previous version) for the GuestPassword parameter. This is a breaking change, but was done to comply with the ScriptAnalyzer rules!

For an openSuse guest OS the result comes back as

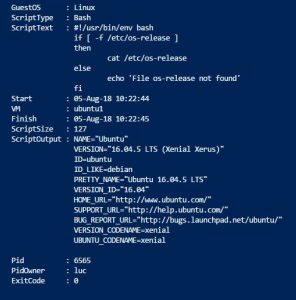

For an Ubuntu guest OS

And for a CentOS guest OS as

One of the target goals of the Invoke-VMScriptPlus v2 was to be able to use the function to runs scripts in a Windows guest OS. The following sample uses the wmic command.

The result comes back as

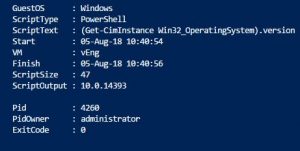

And of course PowerShell scripts

Which returns

Note how this last invocation uses the GuestCredential parameter instead of GuestUser and GuestPassword. The Invoke-VMScriptPlus function supports both methods of passing the guest OS credentials.

This last sample is run under the “normal” PowerShell installed in the Windows guest OS, as we can easily see with

The output of that script

Another new feature of the Invoke-VMScriptPlus function is the ability to call PowerShell Core.

On Windows

which gives.
As you might have noted, we have both PowerShell version installed side-by-side on that station.

And also on Linux

Which results in

The final new feature I introduced in Invoke-VMScriptPlus v2 is the length limitation that exists in the regular Invoke-VMScript cmdlet. That limitation blocks you when you want to transfer scripts that surpass a specific length. Depending on the circumstances that limitation pops up in scripts that have a length somewhere in the neighbourhood of 2600 characters.

I will provide an extensive example of this new feature in my next blog post.
